12 Blueprints for Machines That Shouldn’t Function—but Do

History shows many devices that appear to break basic rules but operate within the laws of physics. Their action depends on forces, pressure shifts, or energy flows that are not obvious at first. These designs prove that simple principles can create surprising mechanical results.

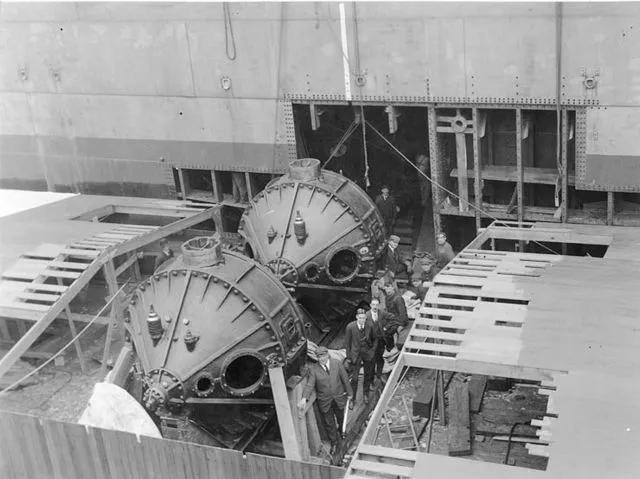

1. 1. Gyroscopic stabilizer

A spinning gyroscope stays upright even when pushed, which looks impossible at first sight. The moving mass holds its direction due to angular momentum. This keeps platforms steady and helps ships and drones balance. The effect feels unnatural until the physics becomes clear.

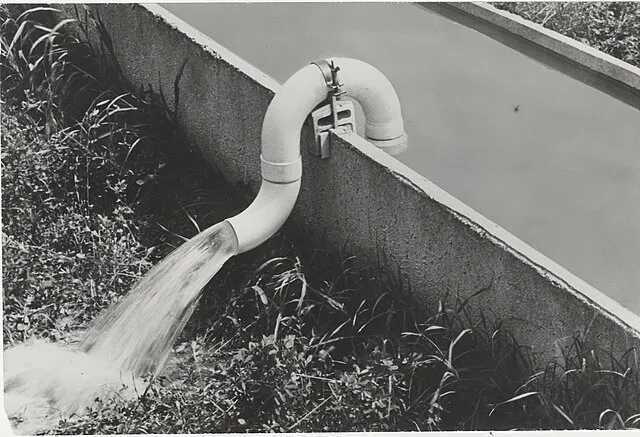

2. 2. Siphon system

A siphon moves liquid uphill before it flows down, which seems to violate gravity. The pressure difference between the two ends drives the flow. Gravity helps pull the liquid through once the line is full. The device works because the higher outlet creates a steady pull.

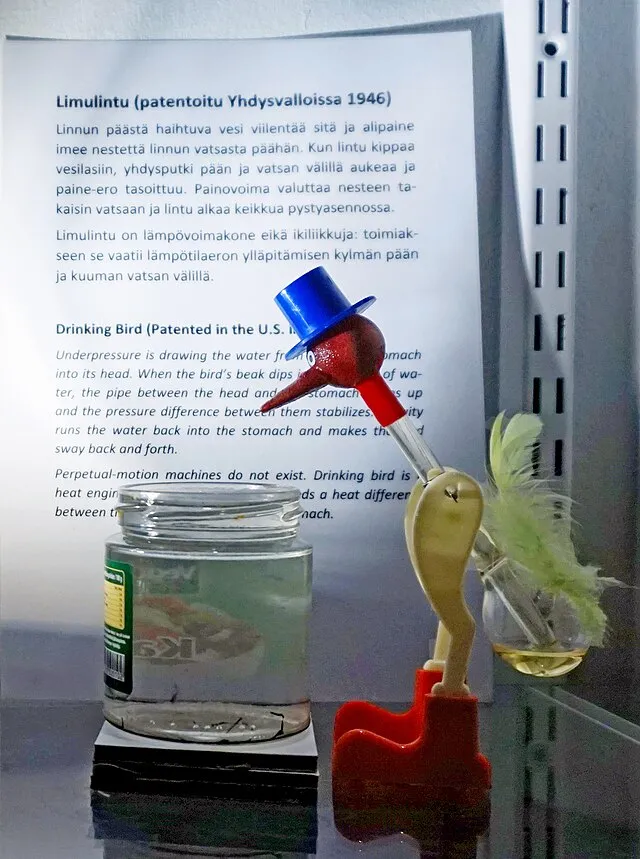

3. 3. Drinking bird toy

This toy dips into water and keeps moving as if powered by nothing. Evaporation cools the head and changes the pressure inside the tube. The pressure shift makes the liquid rise and fall. The cycle repeats and drives the rocking motion.

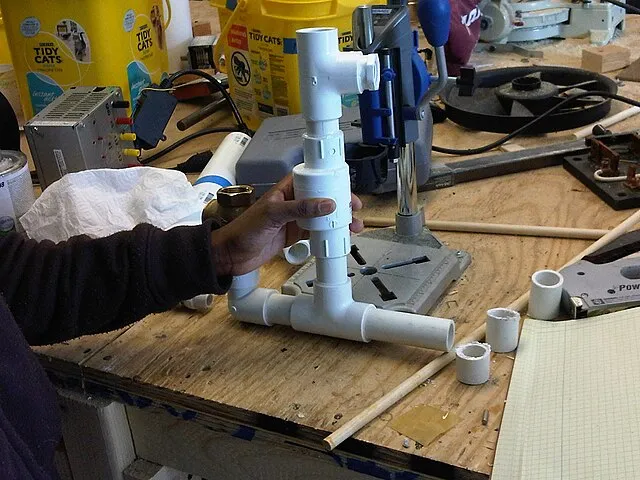

4. 4. Hydraulic ram pump

A ram pump lifts water to a higher point without electricity. It uses the force of flowing water to create a pressure spike inside a chamber. That spike pushes some water upward. The pump seems magical, but it depends on inertia and pressure changes.

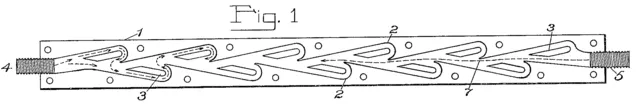

5. 5. Tesla valve

This one-way channel has no moving parts, yet it lets fluid pass more easily in one direction. Its shape guides flow through paths that resist backward motion. The effect comes from geometry rather than mechanical parts. It works even though it looks like a simple pipe.

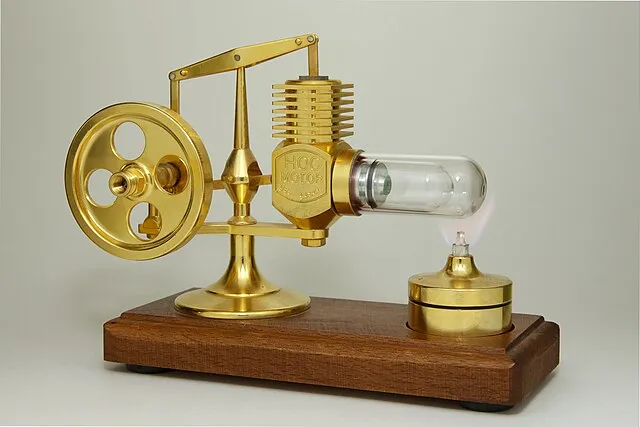

6. 6. Stirling engine

The Stirling engine runs with temperature differences, not combustion. Heat expands gas in one place while cooler gas contracts elsewhere. The pistons move in a steady cycle with surprising smoothness. The engine feels too simple, but it follows clear thermodynamic rules.

7. 7. Aeolipile

This ancient steam device spins when steam escapes from two bent tubes. The steam jets create a reaction force that turns the sphere. It looks like a toy, yet it was an early form of a reaction engine. The action comes from the push of escaping gas.

8. 8. Reaction wheel in spacecraft

A reaction wheel turns a satellite without using fuel. When the wheel speeds up, the craft rotates in the opposite direction. The motion seems to come from nowhere, but it follows conservation of momentum. This lets satellites point cameras with great accuracy.

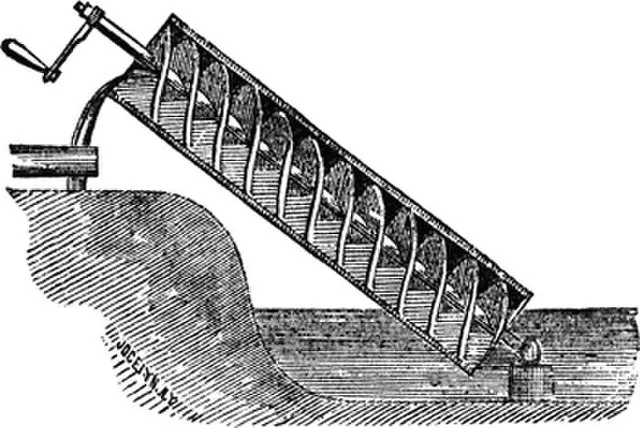

9. 9. Archimedes screw

This device lifts water upward with a simple rotating tube. As the screw turns, pockets of water move higher through the spiral path. It looks too basic to work well, yet it remains useful today. The lift comes from trapped water pushed by rotation.

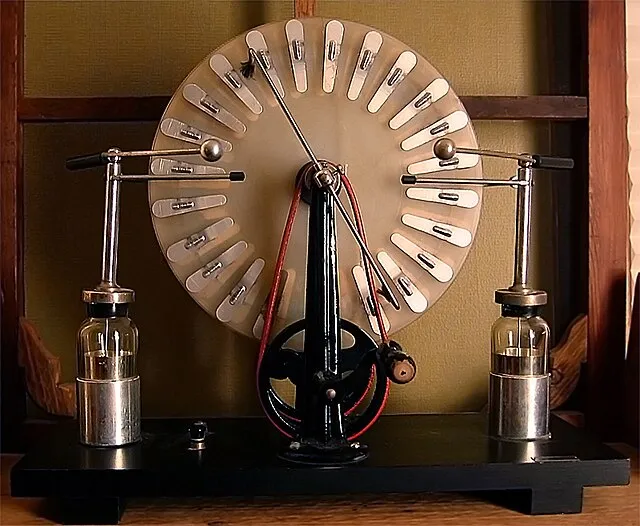

10. 10. Wimshurst machine

This machine uses rotating disks to build high-voltage electricity. The charges gather on metal strips and grow through a feedback process. The device appears too simple to produce strong sparks. The action works because small charges reinforce each other with each turn.

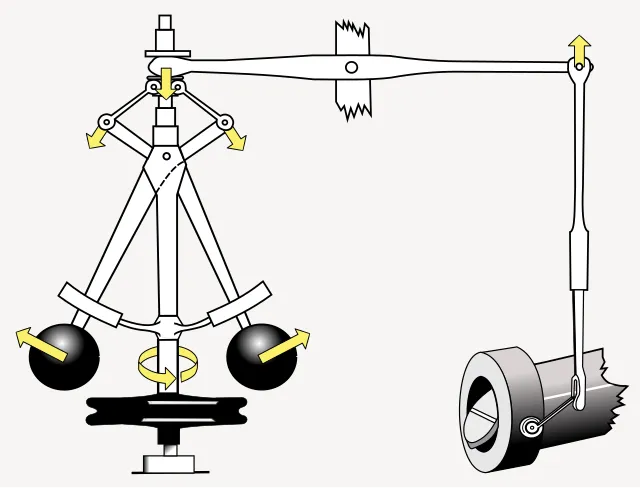

11. 11. Flyball governor

This device controls engine speed using spinning weights. As the weights move outward, they pull on a linkage that adjusts fuel flow. It looks almost too mechanical to regulate power well. The system works because centrifugal force changes with speed.

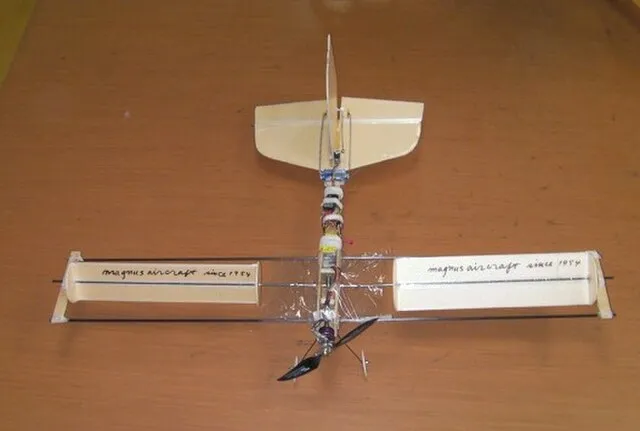

12. 12. Magnus effect rotor craft

A rotor craft with spinning cylinders can gain lift from air passing over the rotating surfaces. The spin changes airflow and creates pressure differences. The lift seems unlikely because the shape is not a normal wing. It functions due to the same principles seen in curved ball movement.
