20 Maritime Tools Sailors Relied on for Navigation

Navigation at sea depended on tools that helped sailors understand their location, track movement, and predict safe routes. Long before satellites, mariners used simple instruments to measure the angle of stars, determine wind direction, and estimate speed. These early tools guided ships across unknown waters and supported long voyages of trade, exploration, and communication. Their accuracy improved over centuries as shipbuilders and navigators refined design and technique. These instruments also helped sailors deal with storms, currents, and nighttime travel. Each tool offered a small amount of information, but together they formed a complete system that allowed ships to move confidently across open seas. Many of these tools continued in use well into the modern era. Their survival shows how effective early navigation methods were even with limited technology.

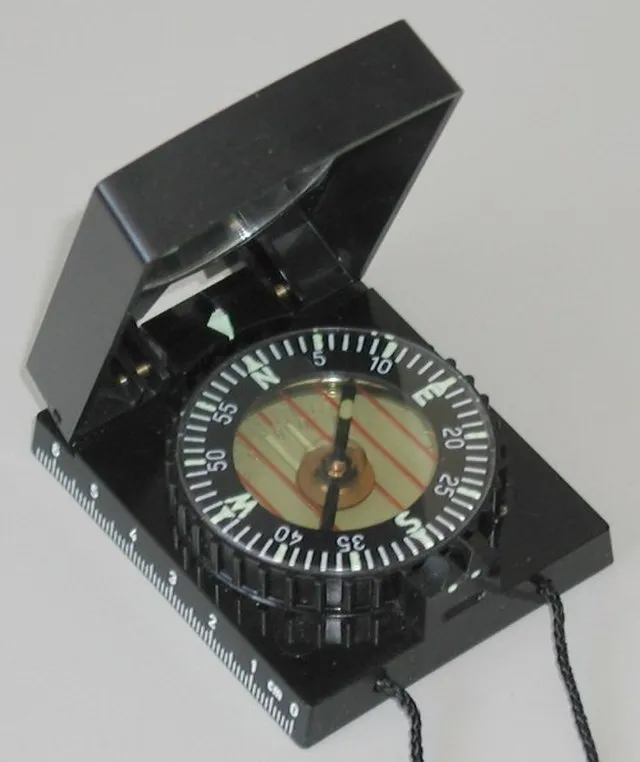

1. Magnetic Compass

The magnetic compass provided sailors with a stable sense of direction by pointing toward Earth’s magnetic north. Its design used a magnetized needle balanced on a pivot inside a protective case. This allowed sailors to steer straight courses even when the sky was cloudy or stars were hidden. Before compasses, navigation relied heavily on landmarks and clear skies. The compass became essential during long ocean crossings where no land was visible. Mariners kept it in a sheltered area to prevent wind or movement from disturbing the needle. Over time, compasses were paired with charts to improve accuracy. This tool transformed seafaring by giving ships a reliable guide through shifting weather and open water.

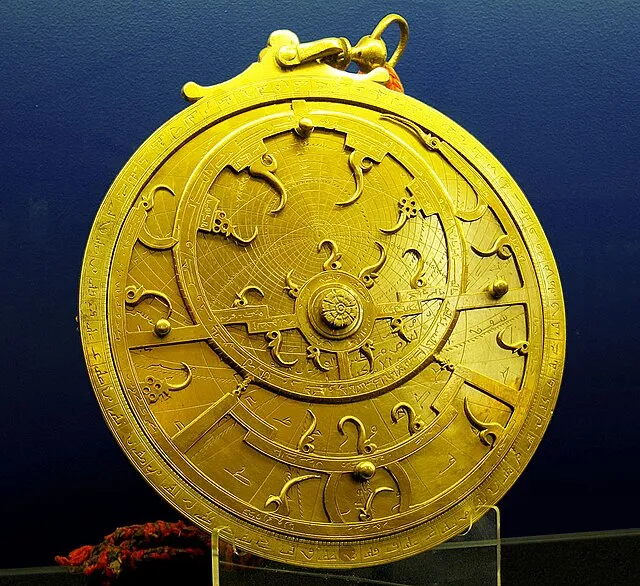

2. Astrolabe

The astrolabe measured the angle between the horizon and a celestial body, usually the sun or a bright star. Sailors used this angle to estimate latitude, helping them determine how far north or south they were. The instrument consisted of a metal disk with rotating arms that aligned with sky objects. Although challenging to use on rough seas, it was a major step forward in navigation. Astrolabes required practice and a steady hand to provide accurate readings. Navigators compared their measurements with tables that listed expected angles for different latitudes. This allowed ships to maintain safer routes across familiar trade paths. The astrolabe laid the foundation for later, more precise tools.

3. Cross Staff

The cross staff helped sailors measure the height of the sun or stars above the horizon. It had a long wooden staff with a sliding crosspiece that aligned with the sky. By holding one end to the eye and adjusting the bar, sailors could estimate latitude. It was simpler than the astrolabe and more practical in calm conditions. However, using the cross staff required staring directly at the sun, which made readings uncomfortable and sometimes inaccurate. Despite this challenge, it remained common for centuries. Its straightforward design influenced the development of more advanced angle-measuring tools. It helped mariners stay on course during long ocean journeys.

4. Backstaff

The backstaff allowed sailors to measure the sun’s altitude without looking directly at it. Its design used shadows cast on calibrated arcs to determine the sun’s angle. This made it safer and more comfortable than the cross staff. The backstaff improved accuracy and became a trusted tool for latitude calculations. It remained popular through the 17th and 18th centuries. Sailors relied on it during clear days when shadows could be read easily. The instrument demonstrated how thoughtful design could solve practical problems at sea. It also served as a bridge between earlier wooden tools and later metal instruments.

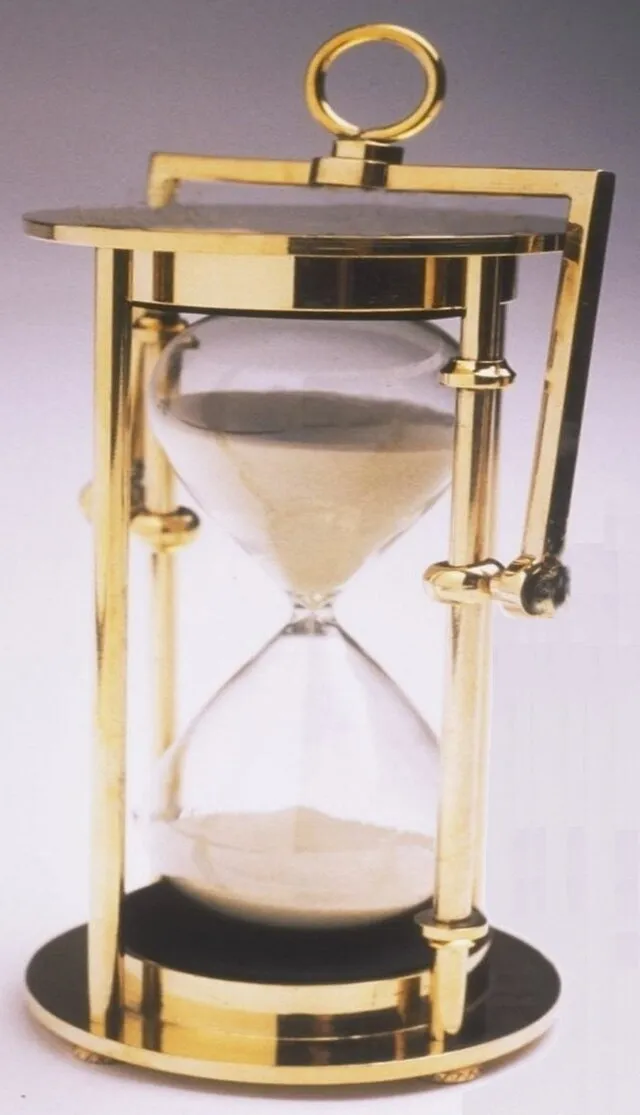

5. Marine Sandglass

The marine sandglass measured time in fixed intervals, usually half-hour periods. Sailors flipped the glass regularly to keep track of watch shifts, logbook entries, and speed calculations. The sand inside flowed at a predictable rate, unaffected by changes in light or weather. This made it more reliable than early mechanical clocks on rolling ships. The sandglass worked closely with the log line to estimate the distance traveled. Its steady timing helped crews organize life aboard the ship, from meals to lookout duties. Despite its simplicity, the sandglass supported many essential navigation tasks. It remained a standard tool on ships for centuries.

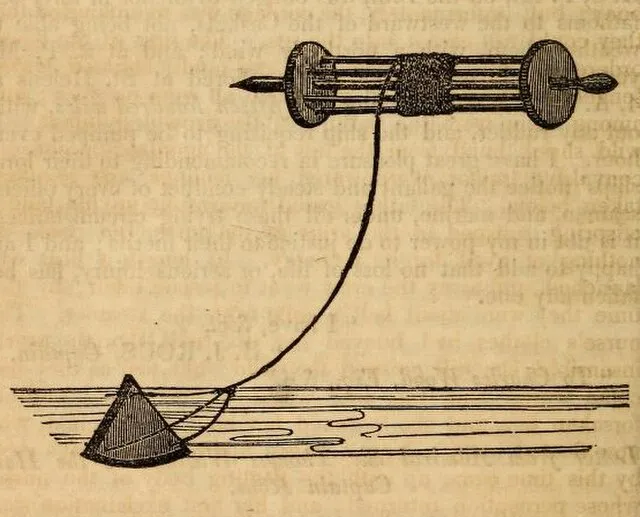

6. Log Line

The log line helped sailors estimate their ship’s speed through the water. It consisted of a rope with knots tied at regular intervals and a wooden board shaped to drag steadily behind the ship. As the board trailed, sailors counted how many knots passed through their hands during a set time measured by a sandglass. This produced the term “knots” for measuring speed. The log line gave navigators a way to estimate daily distance and track their position along planned routes. Though affected by currents and wind, it provided useful information when combined with charts and direction tools. Its simplicity and reliability made it an essential part of early navigation systems.

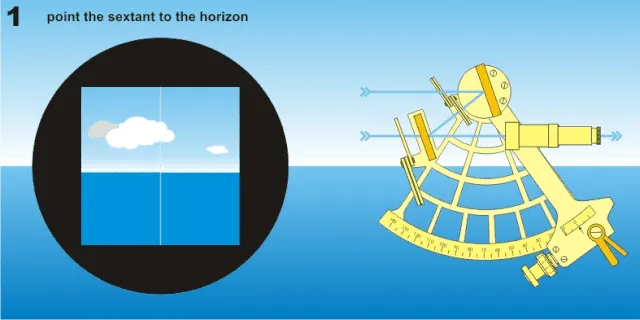

7. Sextant

The sextant became one of the most accurate tools for measuring the angle between a celestial body and the horizon. Its system of mirrors allowed sailors to take readings even on rough seas where the horizon moved constantly. This improved precision helped mariners calculate latitude and, with additional tables, estimate longitude. The sextant’s design reduced errors found in earlier devices. Navigators used it along with almanacs that listed positions of the sun, moon, and stars. With practice, readings could be taken quickly to create reliable navigation records. The sextant remained a central tool on ships well into the modern era. Its durability and accuracy made long-distance ocean travel far safer.

8. Quadrant

The quadrant measured the altitude of the sun or stars using a quarter-circle arc marked with degrees. A plumb line hanging from the top pointed to the angle on the scale. Sailors used this simple but effective tool to estimate latitude on clear days. The quadrant was sturdy and easy to build from wood or metal. Its readings were less precise than those of later instruments, but it allowed consistent measurements across voyages. Many navigators kept it as a backup tool because it worked even when more complex devices failed. The quadrant helped shape early celestial navigation practices. It played a major role during the age of exploration.

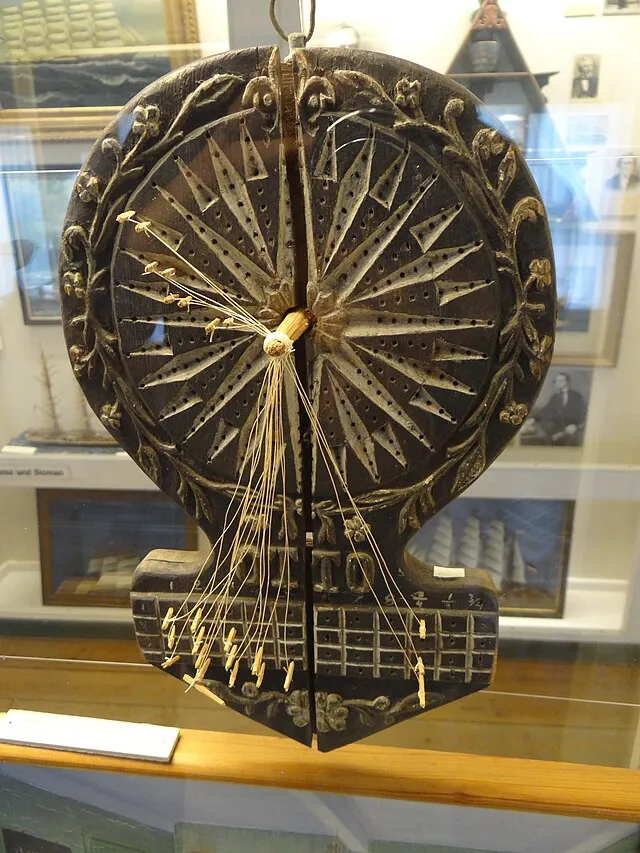

9. Traverse Board

The traverse board recorded changes in course and speed throughout a ship’s watch period. Sailors placed small pegs into holes arranged on a circular pattern to show direction, while another section tracked the estimated distance. This allowed crews to maintain dead-reckoning records between formal calculations. It was an important memory aid during long shifts. The board simplified communication between watches by preserving navigation data. Even if conditions were rough, the pegs allowed a clear record of movement. This tool helped navigators update charts more accurately. Its use reflects the teamwork required in long-distance sea travel.

10. Chip Log

The chip log was an early version of the log line, using a weighted wooden board tied to a marked rope. When thrown overboard, the board created drag while sailors counted knots passing through their hands during a timed interval. This allowed them to estimate speed. The design was simple enough for crews to repair or rebuild at sea. Although not exact, it provided consistent data for dead-reckoning. Navigators combined chip log readings with compass direction and time to estimate position. This method remained in use for hundreds of years because of its reliability. The chip log helped standardize speed measurements across fleets.

11. Lead Line

The lead line helped sailors measure water depth and sample the seabed. It was a rope marked at intervals with a lead weight at the end. When lowered to the bottom, it showed how deep the water was. Wax or tallow is used to weigh collected small materials such as sand or shell fragments, revealing seafloor texture. This information helped sailors avoid shallow areas and identify safe anchor spots. Depth readings also assisted in recognizing familiar coastal regions. The lead line was vital during nighttime or foggy conditions when land was not visible. Its accuracy improved safety along coasts and harbors.

12. Backstay Compass

The backstay compass was mounted along the ship’s rigging so sailors could read direction from different positions on deck. It allowed crews to monitor heading even when working far from the main navigation station. This helped maintain steady course control during sailing adjustments. Its placement made readings available during busy maneuvers. By providing direction in multiple locations, the tool reduced communication errors. It was especially useful in rough seas where movement between decks was limited. The backstay compass supported teamwork and precise steering. Its practical layout showed how navigation tools were adapted to ship design.

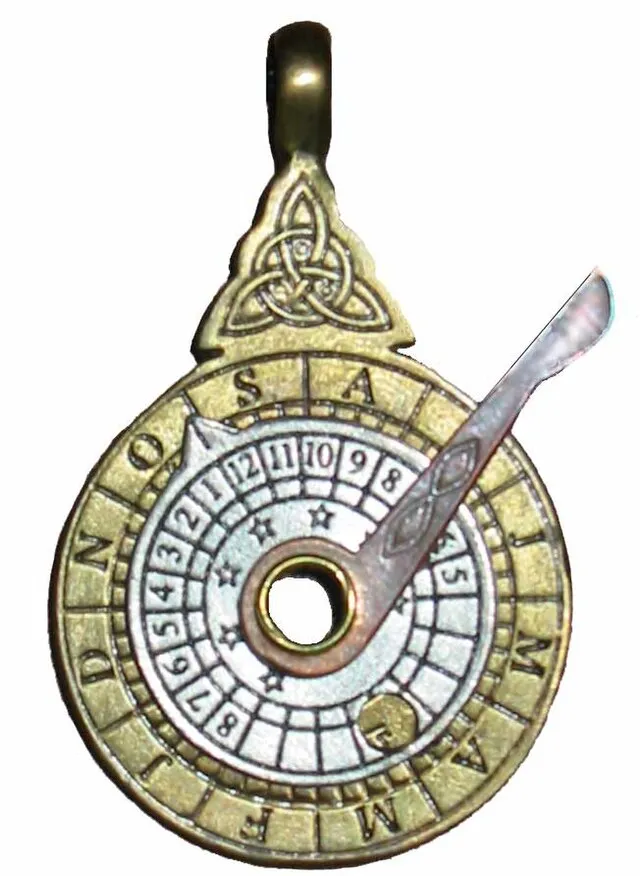

13. Nocturnal

The nocturnal helped sailors estimate time at night by measuring the position of specific stars around Polaris. It used rotating disks marked with dates and star positions. By aligning the tool with the night sky, navigators could estimate local time, which supported calculations for speed and course. This was especially useful when cloud cover or storms disrupted regular timekeeping. While not as precise as later chronometers, the nocturnal provided dependable information on clear nights. Its design was simple enough for sailors to learn quickly. Time estimates played a major role in dead reckoning, and the nocturnal filled a gap when sandglasses or mechanical clocks were unreliable. This tool strengthened nighttime navigation long before modern instruments.

14. Sounding Rod

A sounding rod was used in shallow waters to test depth and detect underwater hazards. Sailors pushed or lowered a marked wooden or metal rod until it touched the seabed. The measured depth guided safe passage through harbors, river mouths, and coastal areas. This method required no complex equipment, making it reliable during emergencies. The rod also provided information about mud, sand, or rocks beneath the ship. Crews depended on it when tides changed or storms shifted sediment. Its quick and direct measurements supported safer anchoring. The sounding rod remained in use even after advanced sounding devices appeared.

15. Sea Anchor

A sea anchor helped steady a ship during heavy winds or turbulent seas. It consisted of a drag device lowered into the water to slow drift and keep the bow facing into waves. This orientation improved stability and protected the ship from damage. Although not a navigation tool in the strictest sense, it helped maintain direction during storms. By preventing uncontrolled drift, the sea anchor allowed sailors to maintain rough course alignment. This made it easier to resume travel once conditions improved. Its design varied, but all versions aimed to stabilize the vessel. The sea anchor continued to assist mariners through many centuries of seafaring.

16. Portolan Charts

Portolan charts were early nautical maps based on real sailing experiences. They showed coastlines, port locations, and compass directions with remarkable accuracy for their time. Created on parchment, they included detailed lines radiating from compass roses to assist course planning. These charts helped sailors navigate busy trade routes across the Mediterranean and beyond. Their precision came from practical observations rather than theory. Mariners added updates after each voyage. The charts guided ships between landmarks and safe harbors, improving long-distance navigation. Their detailed notes made them valuable tools for both pilots and captains.

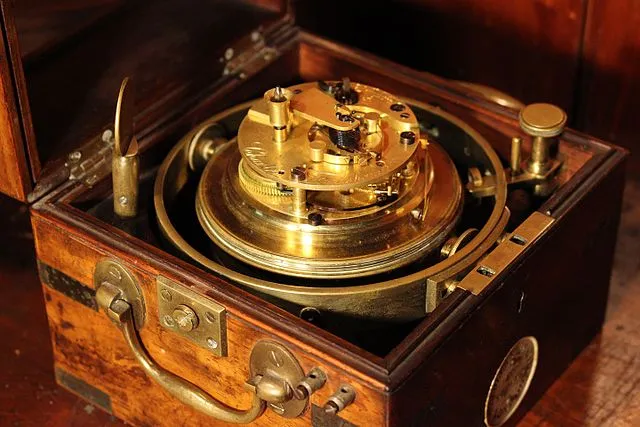

17. Marine Chronometer

The marine chronometer allowed sailors to determine longitude by keeping extremely accurate time at sea. Its design resisted motion, humidity, and temperature shifts. By comparing chronometer time to local noon measured at sea, navigators could calculate their east–west position. This breakthrough solved one of navigation’s greatest challenges. Chronometers required careful winding and protection. Ships often kept multiple units to ensure reliability. With accurate timekeeping, sailors could plan routes with far greater precision. This tool transformed global navigation and supported safer, faster voyages.

18. Pelorus

A pelorus helped sailors measure bearings relative to the ship’s heading. It looked like a compass without magnets, using sighting vanes to identify the direction of landmarks or other vessels. By comparing pelorus readings with compass direction, crews refined their understanding of position. This was useful for coastal navigation and formation sailing. The pelorus allowed sailors to monitor drifting or deviation from planned courses. It supported teamwork between the lookout and the navigator. Because it had no magnetic parts, it avoided interference from metal structures. The pelorus became a trusted tool aboard many ships.

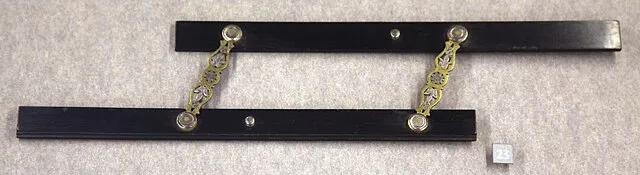

19. Parallel Rulers

Parallel rulers helped sailors transfer directional lines between charts without changing angles. By sliding the two connected rulers across a map, navigators could copy bearings directly from a compass rose. This ensured accurate plotting of courses and corrections on paper charts. The device was simple yet vital for precise planning. Parallel rulers allowed steady, repeatable measurements under rough conditions. Crews relied on them to update positions after each observation. Their practicality kept them in use even after more advanced plotting tools were developed. They remain a core part of traditional chartwork.

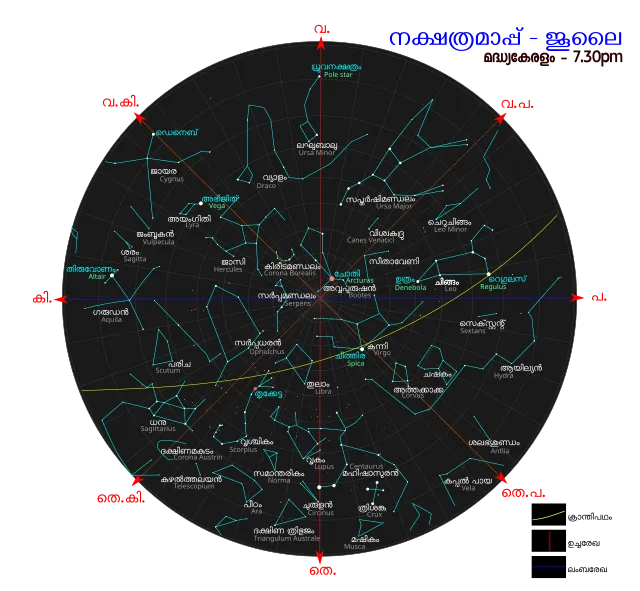

20. Star Charts

Star charts showed the positions of major constellations and navigation stars across seasons. Sailors used them alongside sextants and almanacs to identify celestial bodies accurately. These charts helped determine latitude and assisted with timekeeping. Their layout allowed quick reference during night watches. Star charts evolved as mariners improved their understanding of the sky. The charts supported navigation far from land, where stars were the only reliable guides. They allowed sailors to train new crew members in celestial methods. These maps remain a symbol of classic navigation skills.
